UPPERZONE ROUND/SEMINAR/RECTANGLE TABLE TRUCKS-COMMERCIAL USE TABLE TRANSPORTATION AND STORAGE DESIGNED FOR FORKLIFT HANDLING

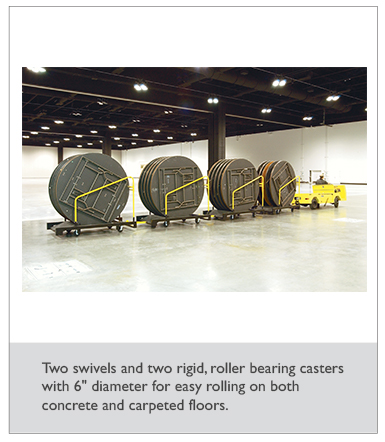

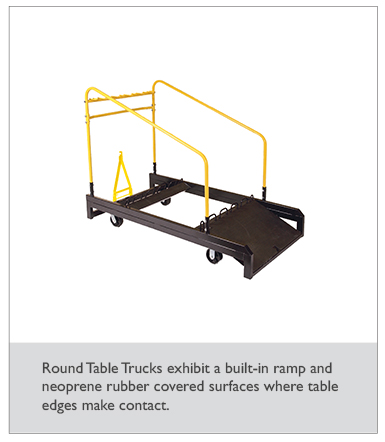

UpperZone Seminar, Rectangle, and Round Table Trucks feature innovative designs. UpperZone Rectangle and Seminar Table Trucks feature a captive design that protects your inventory, improves safety, and saves loading time. The special inclined bed design, in conjunction with a neoprene rubber padded backstop and end stops, prevents tables from sliding off during transport and assures neat stacking. The bed is covered with neoprene rubber pads to protect the surface of your tables. The UpperZone Round Table Trucks exhibit a built-in ramp and neoprene rubber covered surfaces where table edges make contact. These elements eliminate the chance of tables slipping off during transport and prevent damage. UpperZone Seminar, Rectangle, and Round Table Trucks are furnished with two swivel and two rigid, roller bearing casters with 6" diameter for easy rolling on both concrete and carpeted floors. Heavy gauge steel construction makes these table trucks highly durable. When used with a specially engineered, multilevel, drive-in storage rack structure, a high-capacity storage system can reduce your floor space requirements by over 50%. Contact us to see how a multilevel storage system can be used in your facility.


/div>
GET A QUOTE
Select Finish options
Black Metal
Features
  • Designed to reduce set-up costs
  • Improve safety

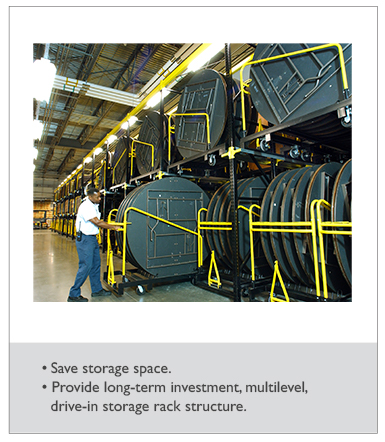

  • Save storage space

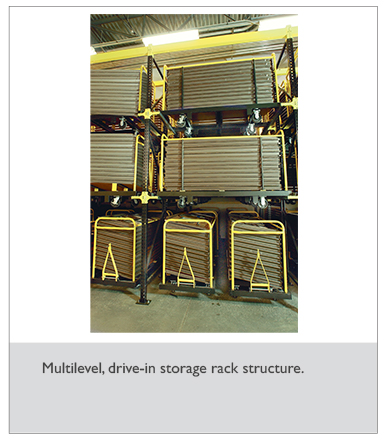

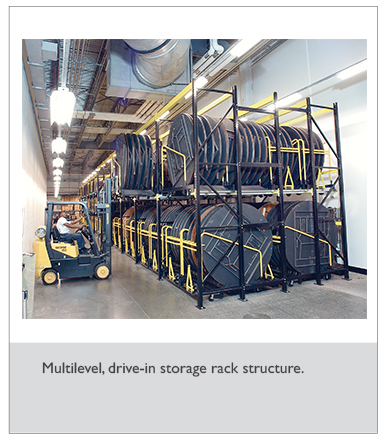

  • Provide long-term investment, multilevel, drive-in storage rack structure

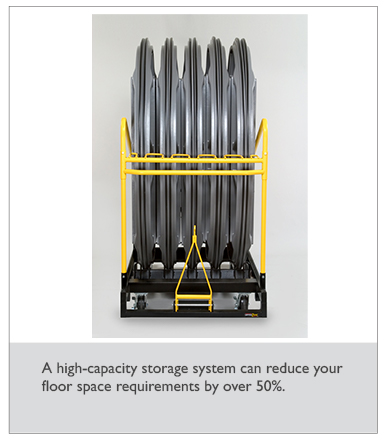

  • Can reduce floor space requirements by 50%
  • 1 1/2" x 3", 14 guage end frames and handles
  • 6" diameter x 2" wide, polyolefin casters
  • 1 1/4" diameter, 14 gauge end frames and handles

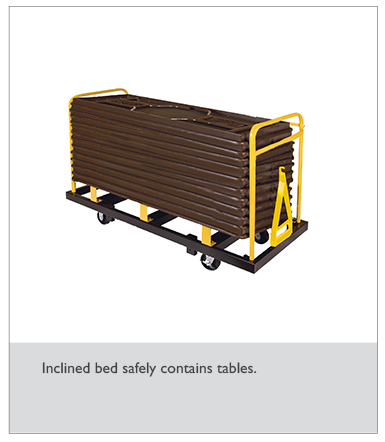

  • Inclined bed safely contains tables
  • Neoprene pads protect tables
  • Designed for forklift handling

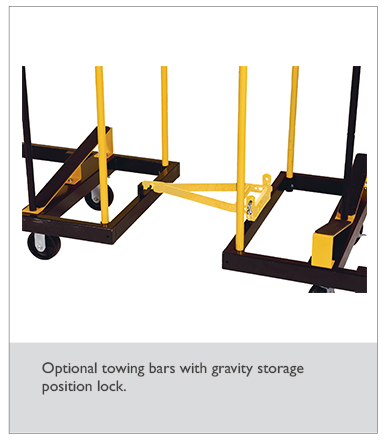

  • Optional towing bars with gravity storage position lock
  • 5-year Warranty
Specifications
Available Sizes

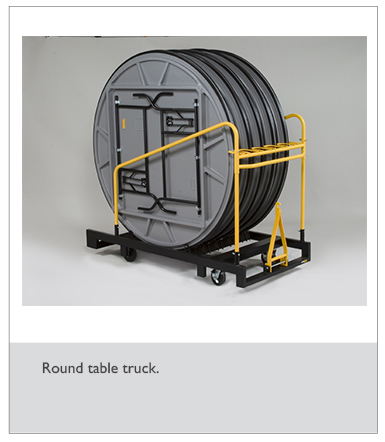

Round Table Truck
33" x 67" x 68" (Holds (8) 60" Diameter Round Tables)
40 1/2" x 67" x 68" (Holds (10) 60" Diameter Round Tables)
33" x 79" x 79 1/2" (Holds (8) 72" Diameter Round Tables)
40 1/2" x 79" x 79 1/2" (Holds (10) 72" Diameter Round Tables)
40 1/2" x 79" x 68" (Holds (10) 60" Diameter Round Hexalite Tables)
40 1/2" x 79" x 79.5" (Holds (10) 72" Diameter Round Hexalite Tables)

Seminar Table Truck
32 1/2" x 79" x 48" (Holds (18-20) 18" x 60" or 72" Tables)
36 1/2" x 79" x 48" (Holds (22-24) 18" x 60" or 72" Tables)
32 1/2" x 79" x 60" (Holds (26-28) 18" x 60" or 72" Tables)
36 1/2" x 79" x 60" (Holds (30-32) 18" x 60" or 72" Tables)
32 1/2" x 103" x 48" (Holds (18-20) 18" x 96" Tables)
36 1/2" x 103" x 48" (Holds (22-24) 18" x 96" Tables)
32 1/2" x 103" x 60" (Holds (26-28) 18" x 96" Tables)
36 1/2" x 103" x 60" (Holds (30-32) 18" x 96" Tables)

Rectangle Table Truck
33" x 79" x 48" (Holds (11-12) 30" x 72" Tables)
33" x 79" x 60" (Holds (14-16) 30" x 72" Tables)
33" x 103" x 48" (Holds (11-12) 30" x 96" Tables)
33" x 103" x 60" (Holds (14-16) 30" x 96" Tables)

Finishes
Metal

Black
